Little DOT I+ 6JI X2 Hybrid RCA input 6.35mm Output Headphone Tube Amplifier

Brand Name: Little Dot
Output Type: LINE OUT (AUDIO OUT)
Input Type: LINE IN (AUDIO IN)
Built-in Battery: No
Recommended Headphone Maximum Impedance: 501-600 Ohm
DSD (Direct Stream Digital): No
Dimensions (WxHxD): 80x97x100 mm
PCM: No
Bluetooth: No
Body Material: Metal
Model Number: DOT I+
Output Power: 800mW @ 32 ohms
Package: Yes
Type: Professional Amplifier
Channels: 2 (2.0)
WIFI: No

---SpecificationsSplit---

Features:

The Little Dot I+ is a hybrid transistor-vacuum tube headphone amplifier, which combines the smooth, musical sound of tubes with the high output current of transistors. The vacuum tube stage is run in Class-A, the MC33078 operational amplifier (socketed) provides voltage amplification, and BD139/BD140 transistors serve as output buffers.

Specifications:

Input:Gold-Plated Unbalanced Phono (RCA) Jacks

Output:1/4" Gold-Plated Stereo Headphone out

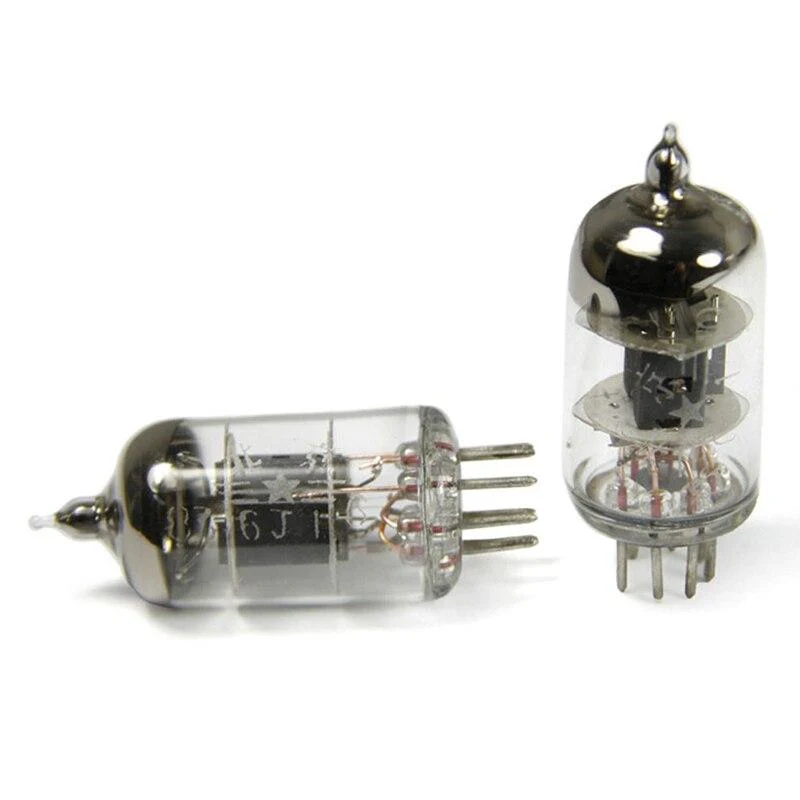

Tube:6JI

Frequency Response: 10HZ - 50KHz (-3 dB)

THD+N:

0.2%: 1Vrms @ 1000Hz

0.6%: 3Vrms @ 1000Hz

1.0%: 5Vrms @ 1000Hz

Signal-to-Noise: 92dB

Suitable Headphone Impedance: 8 - 600 ohms

Input Impedance: 50K ohms

Power Output:

150mW @ 300 ohms

300mW @ 120 ohms

800mW @ 32 ohms

User variable gain settings: 6.5x or 3.25x

Power Consumption: 15VA

Measurements:

Metric: 180mm (L) by 97mm (W) by 100mm (H)

English: 7.08 inches (L) by 3.81 inches (W) by 3.93 inches (H)

Weight: 1.5 kg or 3.3 lbs.

Available in Black

Available in either 120VAC or 220VAC

1 Year Little Dot Warranty

Product Information

Shipping & Returns

Little DOT I+ 6JI X2 Hybrid RCA input 6.35mm Output Headphone Tube Amplifier

Brand Name: Little Dot
Output Type: LINE OUT (AUDIO OUT)
Input Type: LINE IN (AUDIO IN)
Built-in Battery: No
Recommended Headphone Maximum Impedance: 501-600 Ohm
DSD (Direct Stream Digital): No
Dimensions (WxHxD): 80x97x100 mm
PCM: No
Bluetooth: No
Body Material: Metal
Model Number: DOT I+
Output Power: 800mW @ 32 ohms
Package: Yes
Type: Professional Amplifier
Channels: 2 (2.0)
WIFI: No

---SpecificationsSplit---

Features:

Specifications:

Input:Gold-Plated Unbalanced Phono (RCA) Jacks

Output:1/4" Gold-Plated Stereo Headphone out

Tube:6JI

Frequency Response: 10HZ - 50KHz (-3 dB)

THD+N:

0.2%: 1Vrms @ 1000Hz

0.6%: 3Vrms @ 1000Hz

1.0%: 5Vrms @ 1000Hz

Signal-to-Noise: 92dB

Suitable Headphone Impedance: 8 - 600 ohms

Input Impedance: 50K ohms

Power Output:

150mW @ 300 ohms

300mW @ 120 ohms

800mW @ 32 ohms

User variable gain settings: 6.5x or 3.25x

Power Consumption: 15VA

Measurements:

Metric: 180mm (L) by 97mm (W) by 100mm (H)

English: 7.08 inches (L) by 3.81 inches (W) by 3.93 inches (H)

Weight: 1.5 kg or 3.3 lbs.

Available in Black

Available in either 120VAC or 220VAC

1 Year Little Dot Warranty
